Widget content settings

These settings allows you to configure widget's data content and configure tap actions. Available options varies with widget types as detailed below.

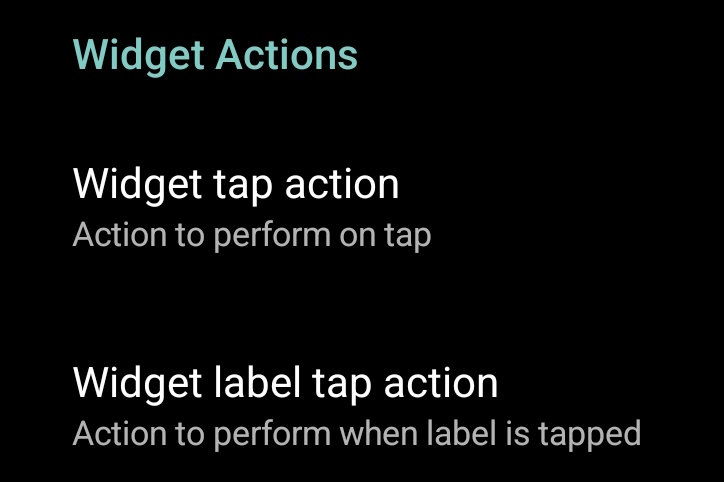

All widgets can configure actions:

  • Widget tap action, configure what to do when tapping the widget itself.
  • Widget label tap action, configure what to do when tapping the widget label (if visible or hidden, not removed).

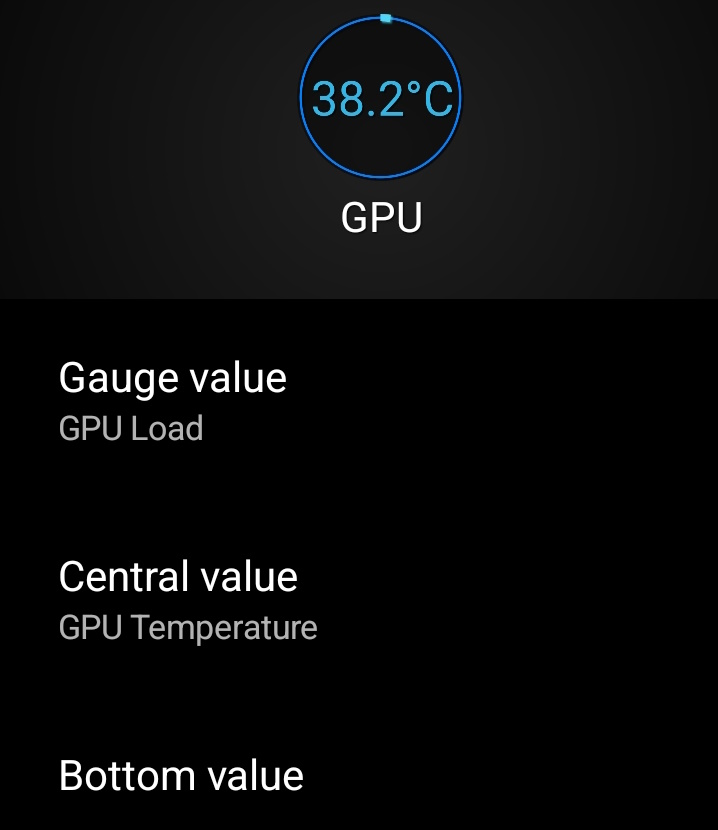

Gauge widget have those simple options:

  • Gauge value, select what the gauge will show (as a percentage of actual data).
  • Central/top value, select nothing, gauge value or a specific data to show its value in the middle of the gauge.
  • Bottom value, select gauge value (nothing) or a specific data to show below the central value (effectively becoming the "top" value).

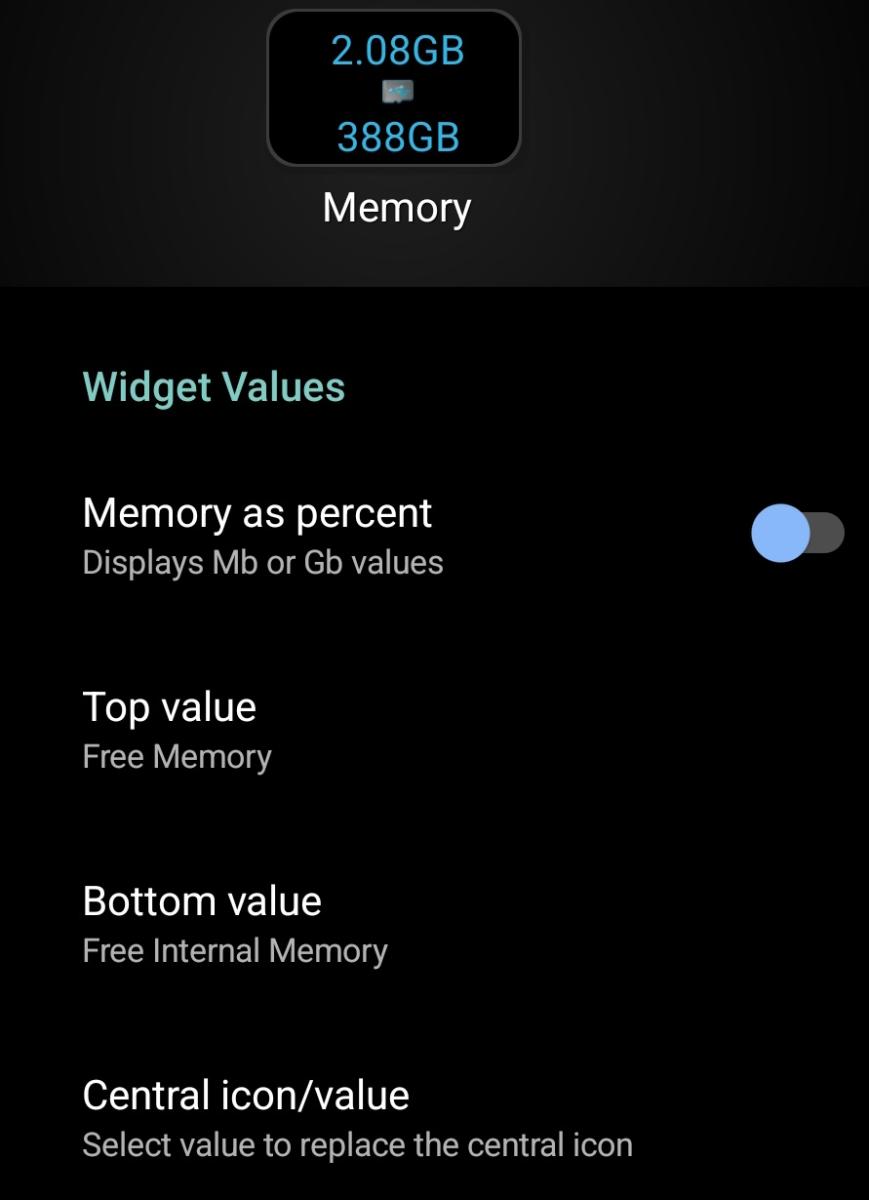

Text (1x1) widgets can show up-to 3 different data with the following options:

  • Top value, selects data to show at the top.
  • Bottom value, selects data to show at the bottom.
  • Central icon/value, select an icon or a third value to show in the middle of the widget.

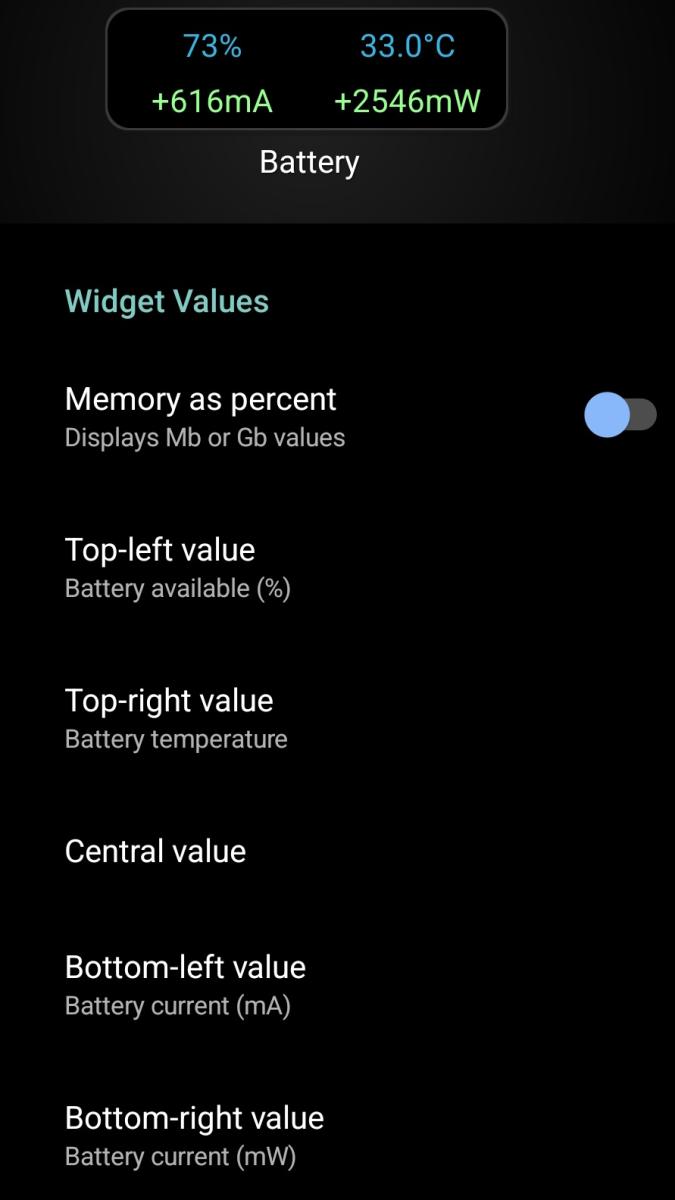

Text (2x1) widget can show up-to 5 different data given the following options:

  • Top-left value,
  • Top-right value,
  • Central value, either nothing or an extra data in the center of the widget
  • Bottom-left value,
  • Bottom-right value

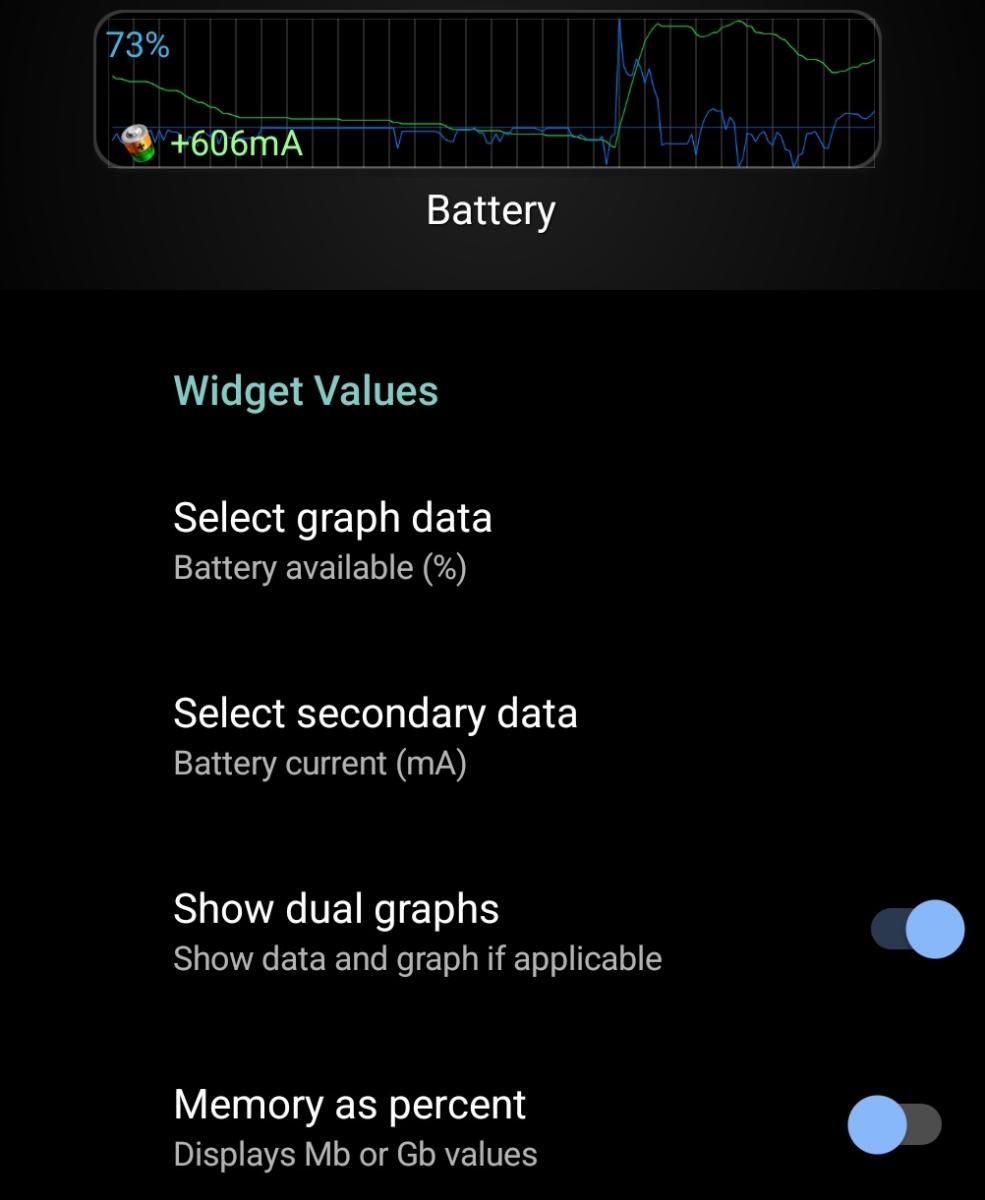

Graphic widgets (any sizes) can show up-to 2 graphics configured as follows:

  • Primary graph data,
  • Secondary graph data,
  • Show dual graphs to enable both graphics or keep only primary one.

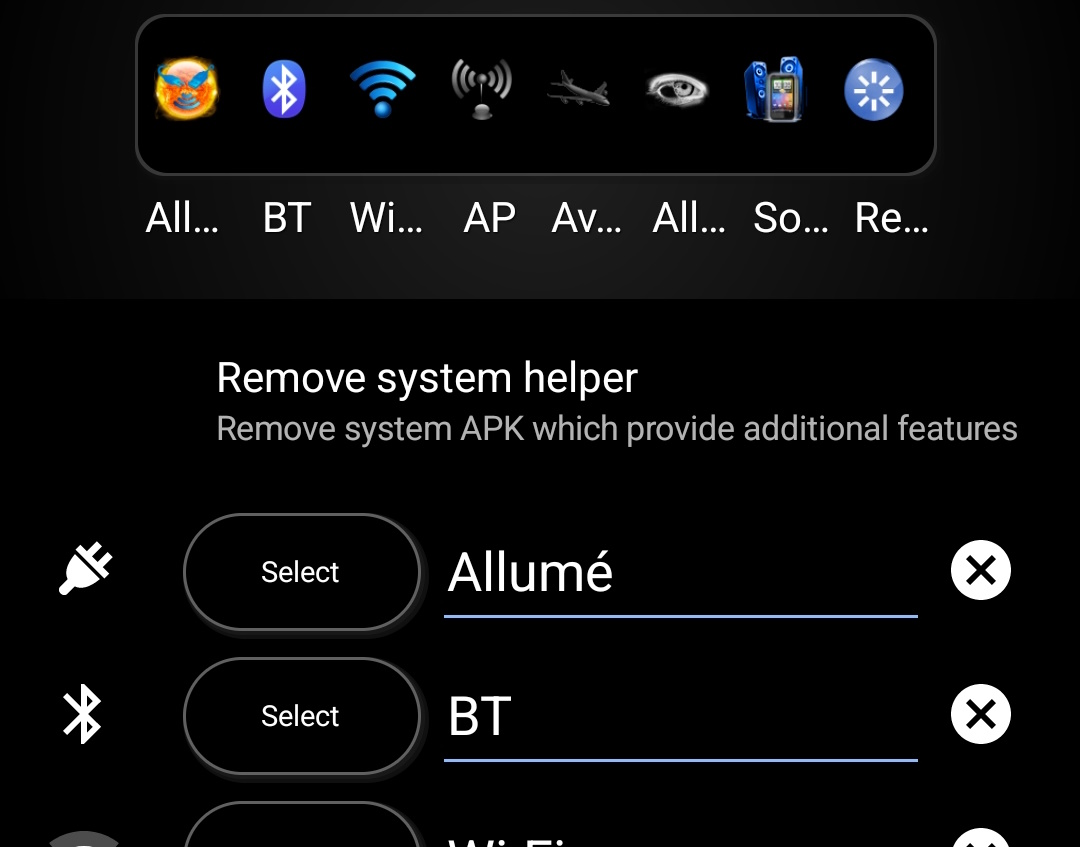

Toggle widgets can configure either 1 toggle or up-to ten depending on its size.

  • Install/remove system helper (root required) allows you to install/remove a system apps that enables many extra toggles.
  • Toggle #X, select the toggle, its label or reset it.

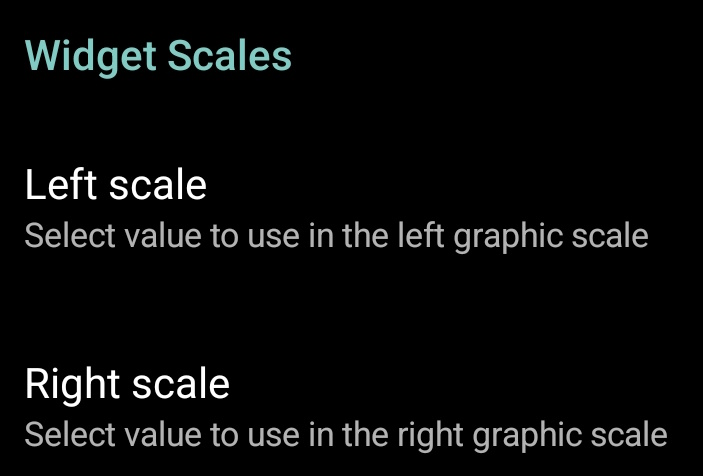

All text widgets can show left and right scales.
